Zoom F8n Field Recorder

Zoom F8n Field Recorder

999.99

When developing the F8n, it was Zoom’s mission to provide every sound professional with the tools to create something exceptional. With features such as Advanced Look-Ahead Hybrid Limiters, Zoom AutoMix ™, and mic/line options for both XLR and TRS inputs, the F8n is the next generation of professional field recording.

FEATURES:

Advanced Look-Ahead Hybrid Limiters
The F8n is equipped with Advanced Look-Ahead Hybrid Limiters that provide overload protection no matter what comes your way. By adding a 1 millisecond delay, the limiters “look ahead”anticipating clipping before it’s recorded. Limiting is applied to each of the 8 channels simultaneously at full resolution, with 10 to 20 dB of headroom to ensure pristine audio on every take.

Mic Preamps
The F8n features a super-low noise floor (−127 dBu EIN) and high gain (up to 75 dB). Mic/line levels are selectable for both XLR and TRS inputs.

Zoom AutoMix™
Meet your new assistant sound editor, the Zoom AutoMix™. This smart software automatically adjusts the levels of your mix to reduce the amount of ambient sound, so you can focus on what really matters – capturing a well-balanced mix.

State-Of-The-Art Time Code
The F8n utilizes a Temperature Compensated Crystal Oscillator (TCXO) that generates time code at 0.2 ppm accuracy, enabling rock-solid syncing of audio and video. When powered off, the F8n will maintain a 0.2 ppm accuracy. Time code I/O is provided on BNC connectors.

Simultaneous Recording
The F8n can record to an SD card and your computer via USB simultaneously. And you can easily back up your files and stream live while recording.

Dual SD Card Recording
Record simultaneously on two SD/SDHC/SDXC cards, up to 512GB each, allowing for redundant recording.

Three Power Sources
A 4-pin Hirose connector allows the use of external 9-18 volt DC battery packs. Power can also be provided by 8 AA batteries or the AD-19AC adapter included with your device. The F8n can switch power sources at a user-defined voltage level for uninterrupted recording.

Dual-Channel Recording
The F8n’s dual-channel recording mode allows you to create safety tracks by doubling up the recordings from inputs 1-4 onto tracks 5-8. Tracks can be controlled independently, allowing you to customize each safety track with different gain, limiting, and more.

Pre-Record
The pre-record function allows you to capture up to 6 seconds of audio before you hit the RECORD button.

The Zoom F8 Control App for iOS provides extensive wireless remote control of the F8n from your iPhone or iPad using Bluetooth LE protocol. Functions include mixer pan and fader levelsas well transport controls. It also monitors input levels, current time code, and battery status. When you’re finished, you can even enter file and metadata info directly from your iOS device.

SPECS:

SD CARDS:
Dual SD: 16MB–2GB SD cards
4GB–32GB SDHC cards
64GB–512GB SDXC cards

INPUTS:
1-8 Connectors: XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)

INPUT SOURCE SET TO MIC:
Input gain: +10 – +75 dB
Input impedance: 2 kΩ
Maximum input level: +14 dBu (at 0 dBFS, limiter ON)
Phantom power: +24/+48V 10mA maximum for each channel

INPUT SOURCE SET TO LINE:
Input gain: -10 – +55 dB
Input impedance: 2.6 kΩ
Maximum input level: +24 dBu (at 0 dBFS, limiter ON)

INPUTS, ADDITIONAL INFO:
Equivalent input noise: −127 dBu or less (A-weighted, +75dB input gain, 150Ω input) Frequency characteristics: 10 Hz – 80 kHz +0.5dB/−1dB (192kHz sampling rate)
A/D dynamic range: 120 dB typ (−60dBFS input, A-weighted)
Crosstalk: −90 dB or less (between adjacent channels, 1kHz)
MIC IN: ZOOM mic capsule input (use disables Inputs 1/2)
SLATE MIC: Built-in mic for voice memos can be assigned to tracks freely

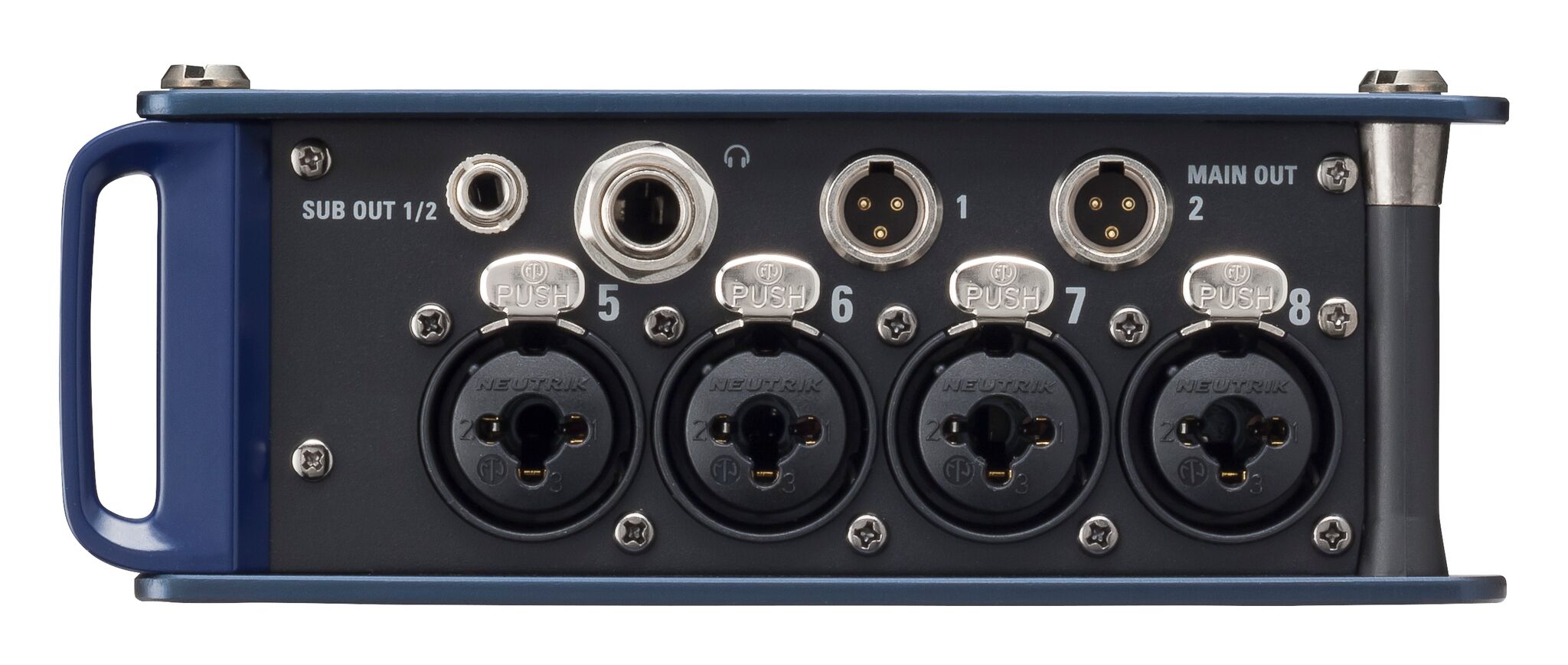

OUTPUTS, MAIN OUT 1/2:
Connectors: TA-3 connectors, balanced output (2: hot)
Output impedance: 150 Ω or less
Reference output level: −10 dBV (normal output level), +4 dBu (Output Level: Line), 1 kHz, 600Ω load
Maximum output level: +10 dBV (normal output level), +24 dBu (Output Level: Line), 1 kHz, 600Ω load

OUTPUTS, SUB OUT 1/2:
Connector: 3.5mm stereo mini unbalanced output jack
Output impedance: 100 Ω or less
Reference output level: −10 dBV (normal output level), −40 dBV (mic output level), 1 kHz, 10kΩ load
Maximum output level: +10 dBV (normal output level), -20 dBV (mic output level), 1 kHz, 10kΩ load

HEADPHONE:
Connector: 1/4" unbalanced stereo output jack
Output impedance: 15 Ω or less Maximum output level: 100mW + 100mW (32Ω load) D/A
D/A dynamic range: 106 dB typ (−60dBFS input, A-weighted)

RECORDING FORMATS, WHEN WAV SELECTED:
Supported formats: 44.1/47.952/48/48.048/88.2/96/192kHz, 16/24-bit, mono/stereo//2-10ch poly, BWF and iXML
Maximum simultaneous recording tracks: 10 (8 inputs + stereo mix) 8 (at 192kHz sampling rate) RECORDING FORMATS: WHEN MP3 SELECTED
Supported formats: 128/192/320kbps, 44.1/48kHz, ID3v1 tags
Maximum simultaneous recording tracks: 2

RECORDING TIME:
Using a 32GB card: 30:51:00 (48 kHz/24-bit stereo WAV) 7:42:00 (192 kHz/24-bit stereo WAV)

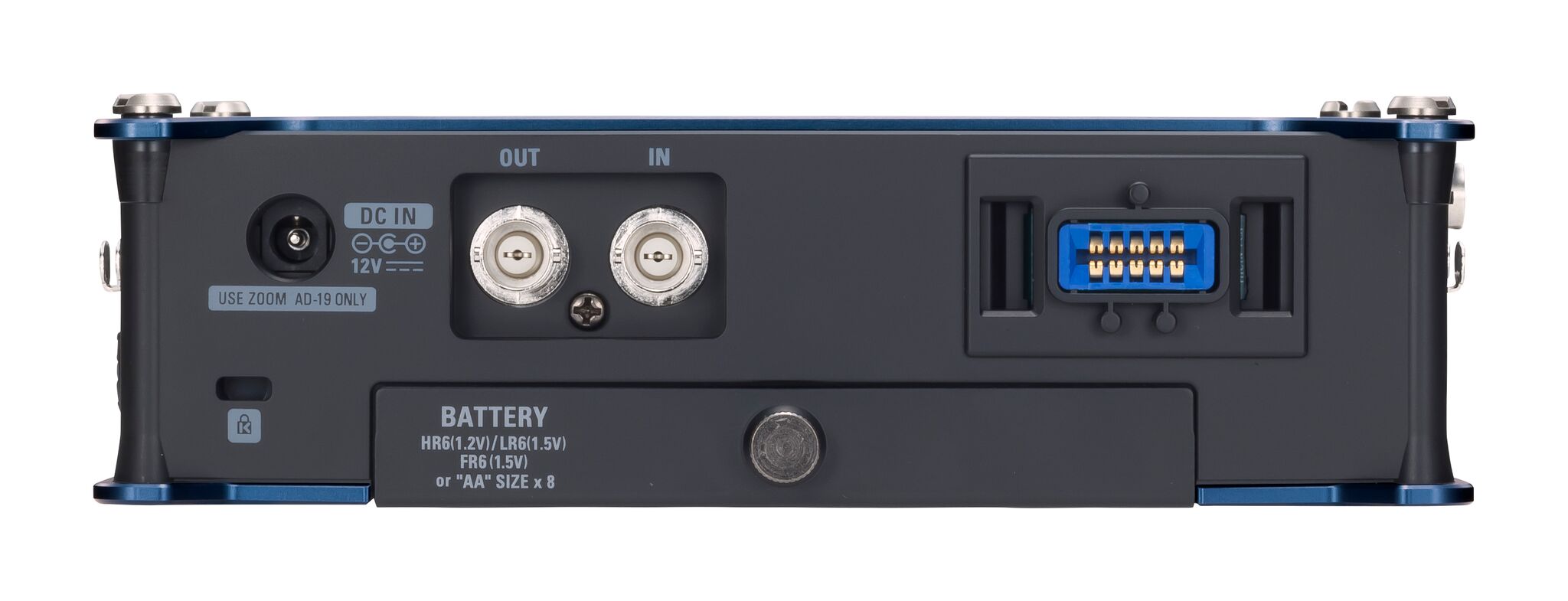

TIME CODE:
Connector: BNC
Modes: Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec (audio clock can be synchronized to timecode)
Frame rates: 23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D
Precision: ±0.2 ppm
Supported input levels: 0.2 – 5.0 Vpp
Input impedance: 4.6 kΩ
Output level: 3.3 Vpp
Output impedance: 50 Ω or less

POWER SUPPLIES:
Batteries: 8 AA
AC adapter: AD-19 DC12V 2A (center plus)
External DC power supply: HIROSE HR10A-7R-4S 4-pin connector (1 pin: −, 4 pin: +), 9–18 V
Power consumption: 15 W CONTINUOUS RECORDING TIME WHEN RECORDING 2 CHANNELS AT 48KHZ/16-BIT TO SD1 WITH MAIN/SUB OUT OFF, TIME CODE OFF, LED/LCD BRIGHTNESS 5, 32Ω HEADPHONES, PHANTOM OFF
Alkaline batteries: 6 hours or more
NiMH (2450mAh): 8.5 hours or more
Lithium batteries: 12 hours or more
CONTINUOUS RECORDING TIME WHEN RECORDING 8 CHANNELS AT 48KHZ/24-BIT TO SD1 WITH MAIN/SUB OUT OFF, TIME CODE OFF, LED/LCD BRIGHTNESS 5, 32Ω HEAD- PHONES, PHANTOM OFF
Alkaline batteries: 3.5 hours or more
NiMH (2450mAh): 6 hours or more
Lithium batteries: 8 hours or more
CONTINUOUS RECORDING TIME WHEN RECORDING 8 CHANNELS AT 192KHZ/24-BIT TO SD1 WITH MAIN/SUB OUT ON, TIME CODE INT FREE RUN, LED/LCD BRIGHTNESS 60, 32Ω HEADPHONES, PHANTOM 48V
Alkaline batteries: 1 hour or more
NiMH (2450mAh): 2 hours or more
Lithium batteries: 3 hours or more DISPLAY 2.4" full-color LCD: 320x240

USB, MASS STORAGE OPERATION:
Class: USB 2.0 High Speed
USB: MULTI TRACK AUDIO INTERFACE OPERATION (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC)
Class: USB 2.0 High
Speed Specifications: 44.1/48/88.2/96kHz sampling rate, 16/24-bit , 8 in/4 out
USB : STEREO MIX AUDIO INTERFACE OPERATION (NO DRIVER REQUIRED)
Class: USB 2.0
Full Speed Specifications: 44.1/48kHz sampling rate, 16-bit , 2 in/2 out
AUDIO INTERFACE WITH REC. (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC)
Class: USB 2.0 High
Speed Specifications: 44.1/48 kHz sampling rate, 16/24-bit , 10 in/4 out
*Note: iOS device audio interface operation supported (stereo mode only)

EXTERNAL DIMENSIONS:
Main unit: 7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H)
178.2 mm (W) × 140.3 mm (D) × 54.3 mm (H)

WEIGHT:
Main unit: 2.2 pounds

30 Day Return Policy and Money Back Guarantee

Quantity:
Add to Cart

International orders may require additional import fees to be paid upon delivery in your country to cover customs and duties charges. These fees are determined after a package reaches customs in your country, and all countries have their own policies for how those fees are calculated. Please check with your local government tax agency for more details.
